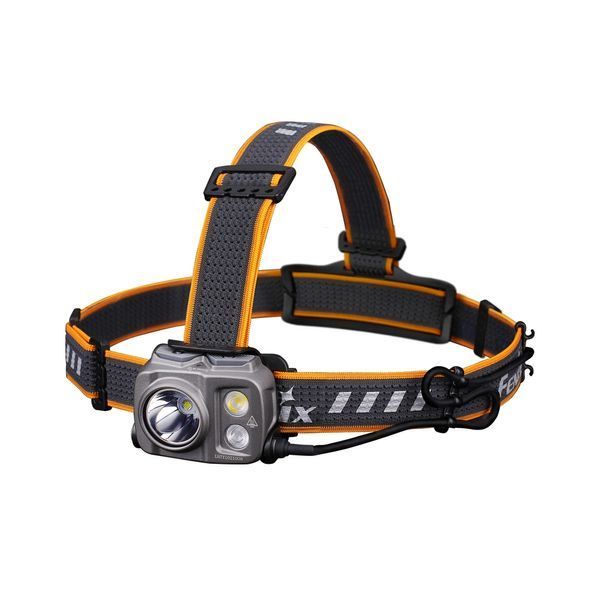

Description of the Fenix ​​HP25R V2 headlamp. 0 (LUMINUS SST40, ANSI 1600 lm):

Fenix ​​HP25R V2 model flashlight. 0 is the frontal option. Provides the owner with the largest luminous flux of 1600 lumens - high beam. The dipped beam reaches 400 lumens. The range of the beam is 290 meters. The Luminus SST40 diode is used to illuminate the lantern, it gives white light, and the Cree XP-G3 S4 LED generates neutral white light. Also, an Everlight 2835 diode is used here, and it gives a red stream of light. The service life of the diodes is 50,000 hours.

The Fenix ​​ARB-L21-5000 lithium-ion battery is suitable for powering the headband. The battery is included. The headlamp works with an 18650 battery. Control is quite easy and simple - you need to use two buttons for this. If you are worried that the light will accidentally turn on when it is not necessary, you can use a lock. The USB Type-C port is suitable for charging the model, it helps to charge the battery quickly and without problems. It should also be mentioned that the lantern can be adjusted in position, the angle of inclination is equal to 60 degrees.

Below is detailed information about the features and characteristics of the device.

Headlight control

Management takes place with two buttons: main and functional. The main switch works to turn the flashlight on or off and to select a mode from the group of "main" modes. The functional switch is required to turn on and off the lamp, as well as to activate the mode in the "functional" group.

Fenix ​​HP25R V2.0 on/off: Press and hold any of the switches for half a second, the flashlight will turn on or off. Selecting a mode from the "main" group: you need to press the main button once, and choose between Eco, minimum, average, maximum, Turbo. Activating a mode from the "functional" group: press the functional button once. It will be possible to choose between minimum, average, maximum, "red light" mode, "SOS" mode.

To lock the model: In the off state, Press and hold either of the two buttons, or simultaneously press the two switches for three seconds. The light will flash red four times to indicate that the lock is on. To unlock, you need to simultaneously press both buttons for three seconds while the forehead protector is locked. Red light mode is activated and the lamp flashes four times.

In the new 2024 versions of the lantern, to lock, press the two switches at the same time and hold them for 3 seconds.

Mode

"Main" group. High beam.

• Turbo. The luminous flux is 1600 lumens, the duration of the glow is a couple of hours. The distance of the beam is 290 meters, and the intensity of illumination is 20,849 candelas.
• Maximum. The brightness is 1000 lumens, the duration of the glow is 4 hours. The distance of the beam is 228 meters. Lighting intensity - 13028 candelas.
• Average. Lighting brightness is 400 lumens. Working time is 8 hours. The range of the beam is 140 meters, and the intensity reaches 4888 candelas.
• Minimal. Luminous flux - 150 lumens. The duration of the glow in this mode is 24 hours. The range of the beam is 83 meters. Light flux intensity: 1732 candelas.
• Eco. The brightness of the light is 50 lumens. The duration of the glow is 56 hours. Action distance - 59 meters. Lighting intensity is 879 candelas.

"Functional" group. Low light.

• Maximum. The brightness of the light is 400 lumens. The duration of work is 8 hours, the range of the beam is 50 meters. The flow intensity reaches 605 candelas.
• Average. Lighting brightness - 150 lumens, duration of work - 24 hours. The distance is 30 meters, and the intensity reaches 220 candelas.
• Minimum. The luminous flux is five lumens, the operating time is 400 hours, the range is 8 meters. The intensity of the luminous flux is 16 candelas.

"Red Light"

• Red mode: the brightness reaches five lumens, the glow duration is 400 hours, the operating distance is 6 meters. Lighting intensity - 11 candelas.
• "SOS". Brightness is five lumens. The working time is 800 hours, the distance of the light flux is 6 meters, and the intensity is equal to 11 candelas.

* The indicated parameters of the lantern glow were obtained in the process of laboratory testing. Under these conditions: a Fenix ​​ARB-L21-5000 lithium-ion battery was used, the temperature was approximately 21 +- 3 degrees Celsius. Air humidity is about 50-80 percent. With other power elements and other environmental conditions, performance indicators may differ from those given.

The body of the model is protected from overheating by default. When lit, the lantern accumulates a lot of thermal energy. To prevent the body from overheating, when the temperature reaches over 60 degrees, the brightness immediately decreases. When the temperature drops below 60 degrees, you can return to a more powerful mode.

Indication of the degree of charge: to track the degree of charge, an indication option is provided. When the flashlight is off, press the button once. The battery status will be displayed. The indicator will show the charge level for a few seconds:

• 100%-85% means that the charge is full, green light;
• 85%-50% means that the charge is sufficient, the green light flashes;
• 50%-25% means that the charge remains low, lights up red;
• 25% -1% shows that you need to urgently charge the battery, the red light flashes.

Physical parameters of the model

The body dimensions are 60*47*33 millimeters. The weight is 238 grams, including the weight of the battery and head mount. Dimensions of the battery compartment: 99*41*39.5 millimeters. The body is made of strong aluminum and high-quality plastic, the materials are light and wear-resistant. Impact resistance reaches two meters. Waterproof index-IP66.

Feature:

• forehead for work, night walks, tourism, active recreation;
• maximum luminous flux: 1600 lumens - high beam; 400 lumens low beam;
• beam range: 290 meters;
• 10 operating modes, 2 groups of modes;
• powered by Fenix ​​ARB-L21-5000 battery;
• diodes: Luminus SST40, Cree XP-G3 S4, Everlight 2835;
• controlled by two buttons;
• indication of the degree of charge;
• protected against overheating of the case;
• low voltage notification option;
• blocking is possible;
• the forehead angle is adjustable by 60 degrees;
• Waterproof index: IP66;
• impact resistance: 2 meters;
• dimensions: 60*47*33 millimeters;
• weight is 238 grams, including the weight of the battery and head mount.

Assembly

Fenix ​​HP25R V2.0 flashlight, Fenix ​​ARB-L21-5000 battery, USB Type-C charging cable, four helmet mounting hooks, three cable clips, spare ring, user manual, warranty card.

Warranty

  5 years from the date of purchase.
