Description

Fenix E05R flashlight (XP-G2 G3, ANSI 400 lm, Li-Po)
ANSI	Turbo	Maximum	Medium	Minimum
Brightness	400 lumens	150 lumens	25 lumens	3 lumens
Working time	/	55 minutes*	5 hours	30 hours
Distance	64 m	40 m	17 m	8 m
Impact resistance	1 m
Waterproof	IPX68
Size	68 mm (Length) 15.3 mm (Head diameter) 15 mm (Lantern diameter)
Weight	24 g (without batteries)
Accessories	Fenix E05R flashlight, Micro USB charging cable, key ring, spare sealing ring, manual, warranty card.
Power elements	Built-in Li-polymer battery with a capacity of 320 mAh.		Reflector Type	Smooth
Housing material	Aviation aluminum, impact resistant plastic		Optical system type	Reflector
Body coating	Grade III anodizing		Packaging	Cardboard box
Turn on	Button in the main part		Switching modes	Button on lamp body

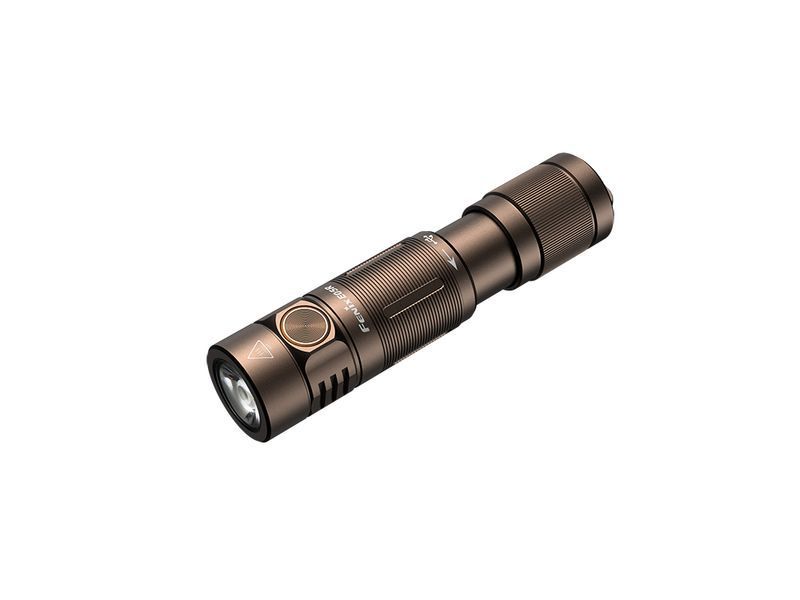

Description of the lamp Fenix E05R (XP-G2 G3, ANSI 400 lm, Li-Po):

The Fenix E05R flashlight model is a small and fairly light mini-keychain. One of the specific features of this attractive flashlight is that the body is presented in three different shades. Namely, in black, green and bronze colors. The lantern not only performs a decorative function, but also gives its owner the largest luminous flux of 400 lumens. At the same time, the light beam spreads over a distance of 64 meters. This flashlight uses a Cree XP-G2 S3 LED, white lighting. It is powered by a built-in Li-polymer battery with a capacity of 320 mAh.

There is a hidden micro-USB port for charging. A high-performance lens with a full reflective coating is also provided. There is a metal button to turn the flashlight on and off, as well as to select the mode. Four different brightness levels.

Lamp control

To turn the Fenix E05R on or off, press and hold the side switch for half a second. Press the side button once to select the mode when the light is on. Thus, you can activate the mode: minimum → average → maximum. If you need to use instant Turbo, for this you need to press and hold the side switch for 1.2 seconds, if you release it, it will return to the minimum mode.

To lock the model, it is enough to press the button twice within half a second when it is turned off. The model blinks twice in minimal mode to show that it is locked. To unlock, you need to press the button twice for half a second - the flashlight will unlock and turn on in minimum mode.

Mode

Turbo. In this mode, the lantern is capable of producing a maximum brightness of 400 lumens. The range of the beam reaches 64 meters. The intensity of the luminous flux is 1046 candelas.
Maximum. The luminous flux is 150 lumens, it shines for 55 minutes, the distance of the beam is 40 meters. The intensity of the luminous flux is 412 candelas.
Average. The brightness of the lighting reaches 25 lumens. The duration of the glow in this mode is five hours. The range of the beam reaches 17 meters. The intensity of the luminous flux is 72 candelas.
Minimum. The luminous flux is equal to 3 lumens. The duration of the glow is 30 hours. Shines at a distance of 8 meters. The lighting intensity is 15 candelas.

It should be noted that the given parameters of the model's glow were obtained during laboratory experiments. For this, a built-in Li-polymer 320 mAh battery was used, the air temperature reached 21±3°C and humidity 50% - 80%. The actual performance of the lantern may be different depending on the environmental conditions and power elements.

The body of the model is protected from overheating by default. During operation, the model accumulates a lot of thermal energy, and heating is a threat to normal functioning. Therefore, when the temperature exceeds 60 degrees, the brightness of the lantern automatically decreases. When the temperature drops below 60 degrees, you can return to the maximum mode again.

The body of the lantern is made of durable aluminum A6061-T6. Body coating: premium hard anodizing HAIII, resistant to abrasive influences. The dimensions of the model are 68*15.3*15 millimeters. The weight is 24 grams. The lamp withstands a drop from a height of one meter. The standard of protection against dust and moisture is IP68.

Features:

small keychain light for daily use;
body colors: black, green, bronze;
the largest luminous flux is 400 lumens;
the distance of the beam is 64 meters;
used diode: Cree XP-G2 S3 white light;
four brightness modes;
charged using a micro-USB port;
powered by a Li-polymer battery with a capacity of 320 mAh;
high-efficiency lens with full reflective coating;
protected against overheating of the case;
material: durable aluminum A6061-T6;
standard of protection against moisture and dust: IP68;
impact resistance: one meter;
coating: premium hard anodizing HAIII, resistant to abrasives;
Lantern dimensions: 68*15.3*15 millimeters;
weighs 24 grams.

Includes:

Fenix E05R flashlight, micro-USB charging cable, key ring, spare sealing ring, user manual, warranty card.

Official warranty

This lantern is provided for a period of 2 years.
