Description

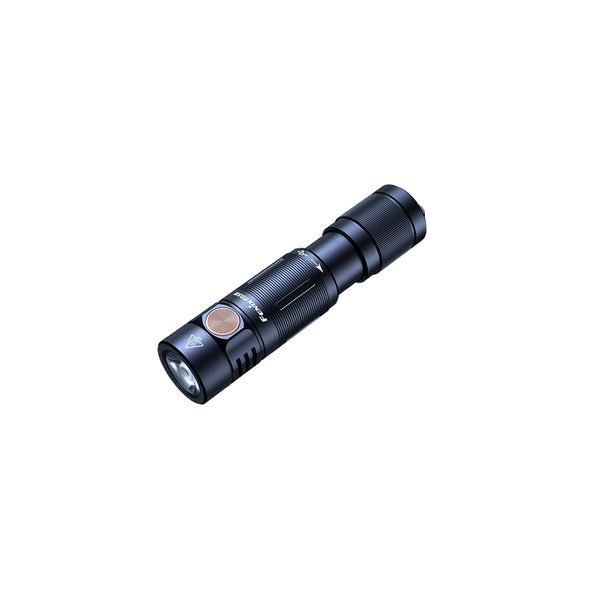

Flashlight Fenix E05R
ANSI	Turbo	Maximum	Medium	Minimum
Brightness	400 lumens	150 lumens	25 lumens	3 lumens
Working time	/	55 minutes*	5 hours	30 hours
Distance	64 m	40 m	17 m	8 m
Impact resistance	1 m
Waterproof	IPX68
Size	68 mm (Length) 15.3 mm (Head diameter) 15 mm (Lantern diameter)
Weight	24 g (without batteries)
Accessories	Fenix E05R flashlight, Micro USB charging cable, key ring, spare sealing ring, manual, warranty card.
Power elements	Built-in Li-polymer battery with a capacity of 320 mAh.		Reflector Type	Smooth
Housing material	Aviation aluminum, impact resistant plastic		Optical system type	Reflector
Body coating	Grade III anodizing		Packaging	Cardboard box
Turn on	Button in the main part		Switching modes	Button on lantern housing

Description of the lantern Fenix E05R :

The Fenix E05R model is a compact and fairly light flashlight in the form of a mini keychain. One of the interesting features of the models is that the flashlight body comes in three different shades. Namely, in black, green and bronze colors. The lantern not only performs a decorative function, but also guarantees the User the highest luminous flux of 400 lumens. At the same time, the distance of the beam reaches 64 meters. The model uses a Cree XP-G2 S3 LED, white lighting. It is powered by a built-in Li-polymer battery with a capacity of 320 mAh.

There is a hidden micro-USB port for charging. A high-performance lens with a full reflective coating is also provided. There is a metal button for turning the device on and off, as well as for selecting the mode. Four different modes of operation of the lantern.

Lantern control

To turn on or off the key fob model, you need to press and hold the side button for half a second. Press the side switch once to select the mode when the light is on. Thus, you can activate the mode: minimum → average → maximum. If you need to use instant Turbo, for this you need to press and hold the side button for 1.2 seconds, if you release it, you will return to the minimum mode.

To lock the model, press the button twice for half a second when it is turned off. The flashlight will blink twice in the minimum mode, showing that it is locked. To unlock, press the button twice for half a second - the flashlight will unlock and turn on in minimum mode.

Mode

Turbo. Here, the highest brightness of lighting is possible, 400 lumens. The range of the beam is 64 meters. The intensity of the luminous flux reaches 1046 candelas.
Maximum. The luminous flux is 150 lumens, it works for 55 minutes, the distance of the beam is 40 meters. At the same time, the flow intensity reaches 412 candelas.
Average. The brightness of the lighting is equal to 25 lumens. The duration of the glow in this mode is five hours. The range of the beam is 17 meters. The flow intensity is 72 candelas.
Minimum. The brightness of the lighting is equal to three lumens. Working time is 30 hours. It shines at a distance of 8 meters. The lighting intensity is 15 candelas.

* It should be mentioned that the given parameters of the model were obtained during laboratory experiments. For this, a built-in Li-polymer 320 mAh battery was used, the air temperature reached 21±3°C and humidity 50% - 80%. The actual performance of the lantern may be different depending on the environmental conditions and power elements.

The body of the model has overheating protection by default. During the glow, the lantern accumulates a lot of thermal energy, and the heating can interfere with normal operation. Therefore, when the temperature exceeds 60 degrees, the brightness of the model automatically decreases. When the temperature drops below 60 degrees, you can return to the maximum mode again.

The body of the lantern is made of durable aluminum A6061-T6. Body coating: premium hard anodizing HAIII, resistant to abrasive influences. The dimensions of the lantern are 68*15.3*15 millimeters. The weight is 24 grams. The lantern easily withstands a drop from a height of one meter. The standard of protection against dust and moisture is IP68.

Feature:

a small keychain lantern for daily use;
body colors: black, green, bronze;
the largest luminous flux is 400 lumens;
the distance of the beam is 64 meters;
used diode: Cree XP-G2 S3 white light;
four operating modes;
charging takes place through a micro-USB port;
powered by a Li-polymer battery with a capacity of 320 mAh;
high-efficiency lens with full reflective coating;
protected against overheating of the case;
material: durable aluminum A6061-T6;
standard of protection against moisture and dust: IP68;
impact resistance: one meter;
coating: premium hard anodizing HAIII, resistant to abrasives;
dimensions are 68*15.3*15 millimeters;
weighs 24 grams.

Complement:

Fenix E05R flashlight, micro-USB charging cable, key ring, spare sealing ring, user manual, warranty card.

Official guarantee

This lantern is granted for a period of 2 years.
