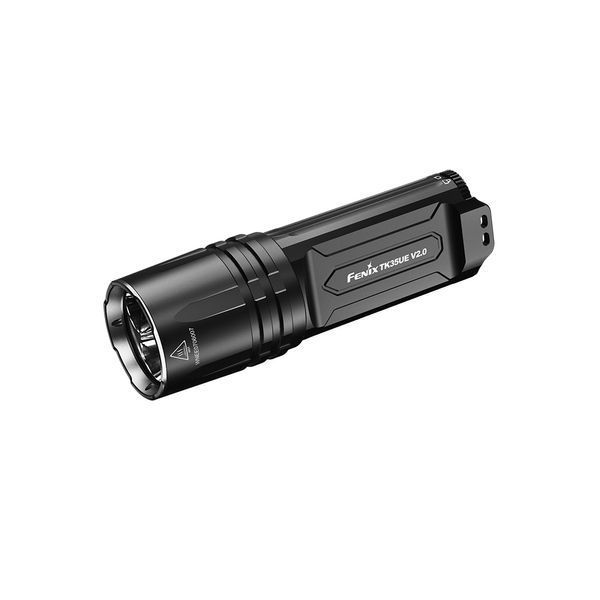

Description of Fenix ​​TK35UE V2.0 tactical flashlight (3 x LUMINUS SST40, ANSI 5000 lm, 18650):

Fenix ​​TK35UE V2 model flashlight. 0 is a dual-mode tactical device with high performance. It has a maximum luminous flux of 5000 lumens with a beam distance of 400 meters. The lantern works thanks to three Luminus SST40 LEDs with a service life of 50,000 hours. The model is powered by two 18650 batteries. In emergency situations, it can be powered by one 18650 battery or two CR123A batteries.

The innovative mechanical tumbler allows you to freely and quickly switch between tactical, duty and lockout modes.

Instant strobe, lockable, flat body and dual tail buttons — all this makes the lantern capable of meeting the needs of military and law enforcement agencies. It can also be useful for many lovers of active leisure. There is a function of indicating the level of battery charge and a message about low voltage. Below - in more detail about the features and capabilities of this model.

Controls

In tactical or casual mode, lightly press the tactical button to instantly turn on the light. If you release the button, the light will turn off. Pressing the tactical switch all the way down will turn on the constant light. In order to turn off the light, you need to press the button again. To switch modes: in any state of the model, turn the button to activate the level you need. Turning to the left allows you to enter tactical mode, and turning to the right allows you to lock this model. To enter the normal mode, you need to put the switch in the middle position.

Switching brightness levels. In Tactical Mode: With the light on, press the function button once to activate the Strobe. To return to the tactical mode, you need to press the button again. With the light off, press and hold the function switch to switch to Strobe - release the light. Normal mode: when the light is on, you need to press the function button once, it will move between Eco→Low→Med→High→Turbo levels. Press and hold the function button to enter the strobe mode, press the button again to return to the previously used brightness level.

To lock the flashlight: when turned on, turn the button to the right, the model will be locked. The lighting will go out, and the battery level indicator will flash red and green alternately. Thus, it will show that the blocking is in effect. In the off position, also turn the button to the right side - this way you will be able to block the lantern. If at this time you press the tactical button once, the battery level indicator will show the current state of the flashlight. To unlock: switch the button to tactical or daily mode.

Mode

• Tactical group. Tactical luminous flux is 3500 lumens, the duration of the glow is 1 hour and 50 minutes. The range of the beam reaches 320 meters.
• Strobe light flux is 3500 lumens.
• Daily group. Turbo-brightness of lighting is equal to 5000 lumens, this is the largest value. The working time in this mode is 1 hour and 40 minutes. Range - 400 meters.
• High. The luminous flux reaches 2000 lumens, the duration of work is two hours. The distance of the beam is 250 meters.
• Med. The brightness of the light is 800 lumens, the duration of the glow is four hours. Beam distance - 160 meters.
• Low. Brightness is 350 lumens. The duration of the glow is 13 hours and 40 minutes. The beam distance is 100 meters.
• Eco. Lighting brightness - 30 lumens, duration of work - 85 hours, beam range - 32 meters.
• Strobe. The luminous flux reaches 3,500 lumens.

* The indicated performance indicators of the lantern were obtained during laboratory tests. Where the conditions were: one Fenix ​​ARB-L 18 - 3000P lithium-ion battery was used, the temperature was 21 + - 3 degrees Celsius, and the humidity was about 50% -80%. The actual performance of the flashlight may vary depending on different environmental conditions and the battery used.

According to the manual for operation of the flashlight it is recommended to use Battery 18650 Fenix 3000 mAh ARB-L18-3000P, the feature of these batteries is an increased maximum load current - 14 A, or third-party batteries that support a maximum load current of at least 14 A. If you use a regular ARB-L18- series battery (for example, ARB-L18-3400), the flashlight may not work in Turbo and Strobe modes.

The flashlight has a charge level detection function. Whenever the flashlight is turned on in tactical or normal mode, the function button indicator shows the charge level for three seconds. With Fenix ​​TK35UE V2 locked. 0 you can press the function button to track the degree of charge. Green lighting indicates that the charge is full, 100% -85%. A flashing green light indicates that the charge is sufficient, 85%-50%. Red light means 50%-25% charge left. Finally, if it's flashing red, it means the charge is critically low, 25%-1%.

The body of the model is protected from overheating. When it is used for a long time at maximum modes, a large amount of heat is released. When the temperature reaches 60 degrees or more, the brightness is automatically reduced to lower the body temperature. When the temperature drops below 60 degrees, it is possible to return to more powerful modes.

Physical parameters of the model

The body of the lantern is made of strong aluminum a6061-T6. There is an anti-abrasive coating with hard anodization of the third type of premium class. The dimensions are 143 * 43 millimeters, the weight reaches 202 grams, excluding the battery. Easily tolerates a drop from a height of one meter. The standard of protection against dust and moisture is IP68, which means that the case does not let water inside.

Characteristics:

• tactical lantern for tourism, active recreation;
• the maximum brightness is 5000 lumens;
• maximum range - 400 meters;
• powered by two 18650 batteries;
• LEDs: Luminus SST40 with a service life of 50,000 hours;
• there is an indication of the degree of charge;
• low voltage alert function;
• eight operating modes;
• the housing is protected from overheating;
• The body material is high-strength aluminum a6061-T6;
• treatment - anti-abrasive coating with hard anodizing of the third type of premium class;
• dust and water protection standard: IP68;
• easily tolerates a fall from a height of one meter;
• the dimensions are 143 * 43 millimeters;
• weight reaches 202 grams, excluding the battery.

Complete set

Fenix ​​TK35UE V2.0 model flashlight, cover, lanyard, spare sealing ring, user manual, warranty card.

Official warranty

This lantern model has an official warranty of five years from the date of purchase.
