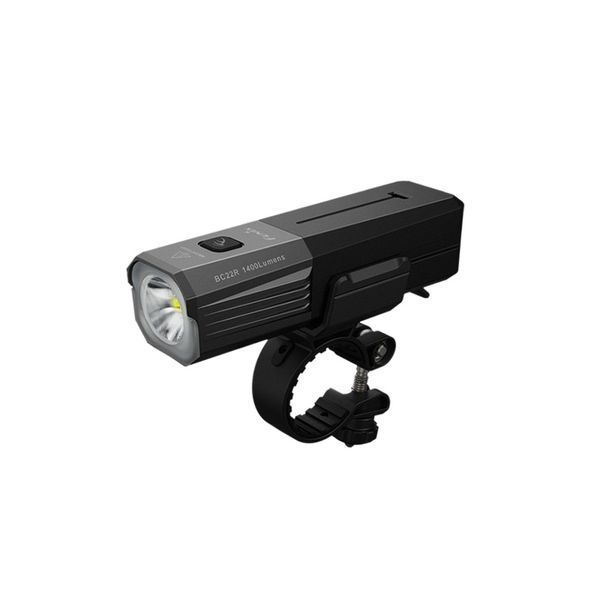

Description of the Fenix ​​BC22R bike light:

The Fenix ​​BC22R bike light is a high-performance model with a Luminus SST40 LED that emits light with a brightness of up to 1400 lm. The bionic design of the structure is developed with an emphasis on improved aerodynamics, so the device is suitable not only for everyday cycling, but also for professional road cycling.

The main feature of the bicycle light is the anti-glare lens, which cuts off the light line and prevents blinding of other road users. Semi-open lens design increases the beam width for detailed illumination of a large area and increases your visibility to drivers of other vehicles approaching from the right, left or rear.

Operating modes and control features

Among the 5 modes, there are 4 constant light options and flashing flashes that can be used as emergency lights. The color temperature of the beam is within 6000-6500K.

Mode parameters:

• Turbo: 1400 lm – 6100 cd – 2 h 20 min – 156 m;
• High: 600 lm – 2450 cd – 5 h 30 min – 100 m;
• Medium: 200 lm – 800 cd – 11 h - 57 m;
• Low: 50 lm - 200 cd - 41 h - 28 m;
• Flashes: 200 / 50 lm.

Pay attention! The duration of work in Turbo mode is indicated in the sum of work in less bright modes, to which the velolight switches when the intelligent protection against overheating is triggered.

The interface with one-button control allows you to quickly adjust the light. The switch is located on the top surface of the case for quick access.

Power supply

The Fenix ​​BC22R requires one 18650 battery to power it. A power supply of the appropriate size with a capacity of 3400 mAh is included.

The battery can be charged without removing it from the battery compartment. The USB Type-C port located at the bottom of the structure is intended for this purpose. The port is covered with a plug to protect against dust and splashes when riding in bad weather.

Charging from 0% to 100% takes 3 hours. You can monitor the charge level using the color indicator in the control button.

Physical parameters

The case of the Fenix ​​BC22R has been tested for shock resistance and can withstand a drop from a height of 1.5m. Due to the tightness according to the IP66 standard, the bike light can be used during heavy rain.

The kit includes a branded mount with an adapter, which makes it easy to install and remove the device from the bike without the need for auxiliary tools. The mount supports normal and reverse mounting, adapting to your mounting style.

Assembly

Fenix ​​BC22R bike light, Li-ion battery ARB-L18-3400, USB-C charging cable, bicycle mount with adapter, spare sealing ring, user manual, warranty card.

Features:

• cycle light for everyday use and road cycling;
• LED type - Luminus SST40;
• max brightness - 1400 lm;
• light color temperature - 6000-6500K;
• beam distance - 156 m;
• anti-reflective lens with semi-open design increases the width beam and prevents blinding of other road users;
• 5 modes of operation, including flashing lights;
• one switch control with built-in charge level indicator;
• power source – 1 x 18650;
• charging method – USB-C input port;
• full charge time – 3 hours;
• impact resistance – 1.5 m;
• standard of dust and moisture protection – IP66;
• dimensions – 115 x 34 x 29 mm;
• weight – 157 g (including the battery);
• the mounting kit supports normal and reverse installation.
